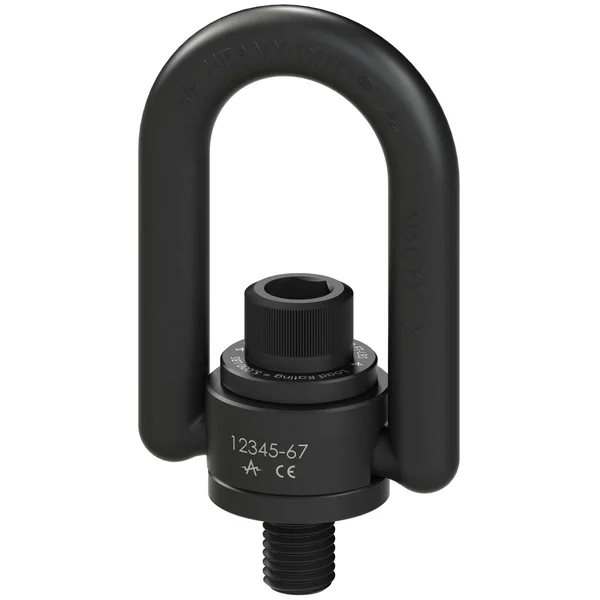

1/2-20 x 1.06, 2250 lb WLL, Heavy Duty ADB Hoist Ring 33317

Name: 1/2-20 x 1.06, 2250 lb WLL, Heavy Duty ADB Hoist Ring 33317
Brand: Uvarella
SKU: SKU-E706F5C6CE46
Price: 30.31 CAD
Availability: InStock

SKU: SKU-E706F5C6CE46

List Price: CA$101.03

CA$30.31 SAVE CA$70.72 (70%)

Price includes all taxes

In Stock — Ready to Dispatch

Shipping calculated at checkout · Delivery timing is shown in the shipping policy
30-Day Returns · Eligibility rules apply
Secure Checkout · SSL encrypted payment

View shipping policy →

Quantity

Eligible items may be returned within 30 days. See the return policy for conditions.

Payment Method

Cash on Delivery — pay when your order is delivered.

Product Details

About this product

Description

Material: Forged and machined high strength alloy steel - Design Factor: Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis - Range of Movement: Swivel 360°. MIL-STD 209, Meets ANSI/ASME B30.26Finish: Black Oxide Finish for corrosion resistance - Typical Applications: Hoist Rings are specified and used in nuclear energy equipment200% Proof Load Tested - Individually Serial Numbered - All dimensions approximate. Working Load Limit: 2250 pounds. Heavy Duty Hoist Ring Threaded Stud Specifications: 1/2 inch diameter, 20 threads per inch, 1.06 inches long. Working Load Limit: 2250 pounds. Material: Forged and machined high strength alloy steel - Design Factor: Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis - Range of Movement: Swivel 360°, Pivot 180° Under Load - Specifications: Meets Military Specification No. MIL-STD 209, Meets ANSI/ASME B30.26Finish: Black Oxide Finish for corrosion resistance - Typical Applications: Hoist Rings are specified and used in nuclear energy equipment200% Proof Load Tested - Individually Serial Numbered - All dimensions approximate variations do not effect use or design factor - ADB Part Number: 33317. Heavy Duty Hoist Ring Threaded Stud Specifications: 1/2 inch diameter, 20 threads per inch, 1.06 inches long.

Key Features

Material: Forged and machined high strength alloy steel - Design Factor: Minimum Design Factor = 5:1, Magnetic Particle Inspected Per ASTM E1444, Hoist Rings retain the same rated load from 0 to 90 degrees from the bolt axis - Range of.
MIL-STD 209, Meets ANSI/ASME B30.26Finish: Black Oxide Finish for corrosion resistance - Typical Applications: Hoist Rings are specified and used in nuclear energy equipment200% Proof Load Tested - Individually Serial Numbered - All.

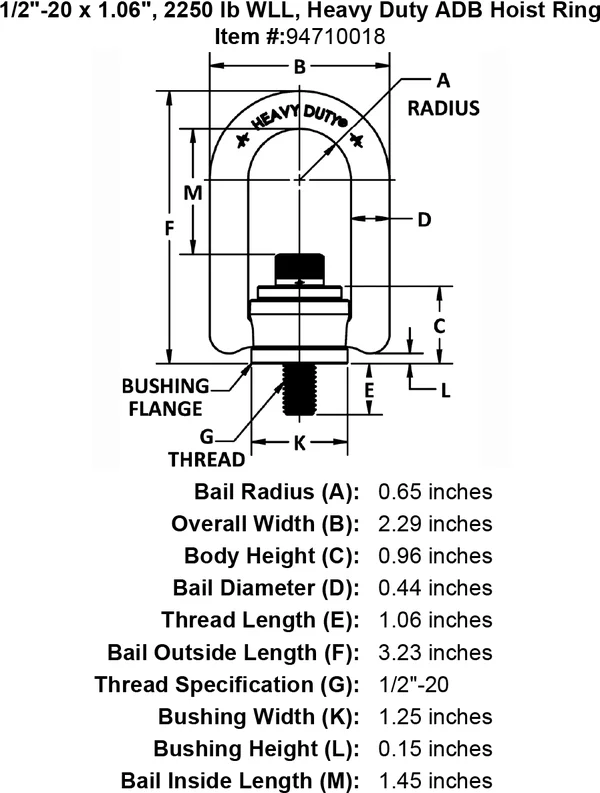

Heavy Duty Hoist Ring Threaded Stud Specifications: 1/2 inch diameter, 20 threads per inch, 1.06 inches long.
Working Load Limit: 2250 pounds.
