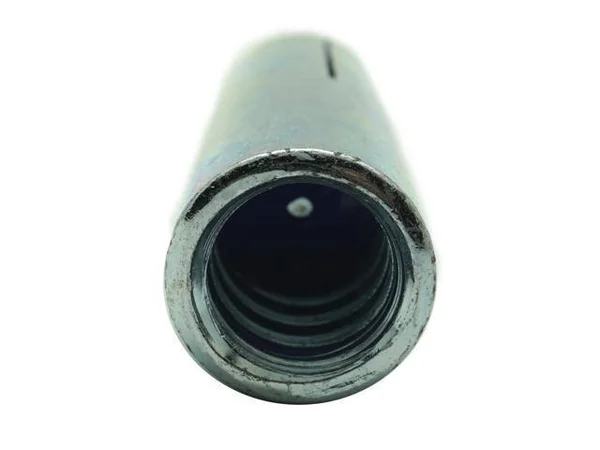

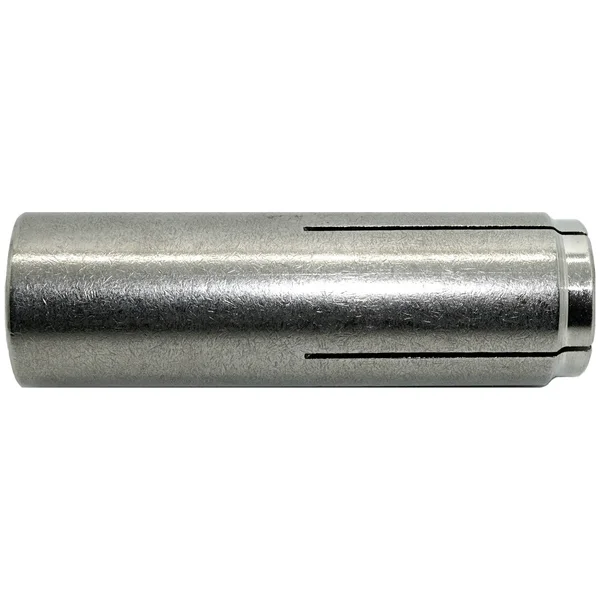

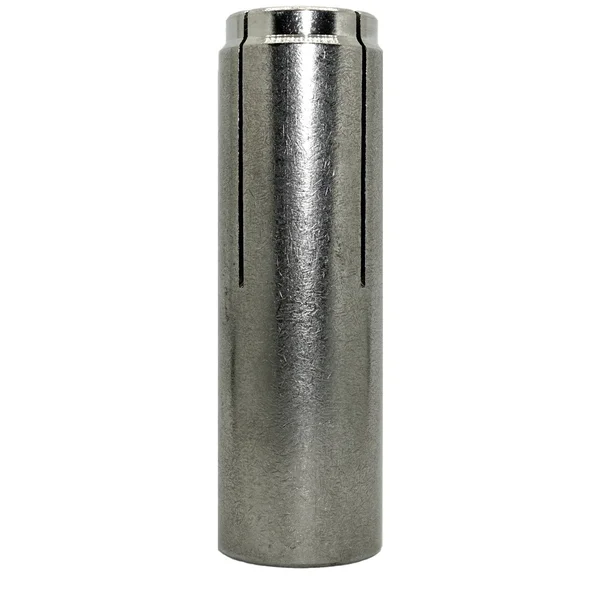

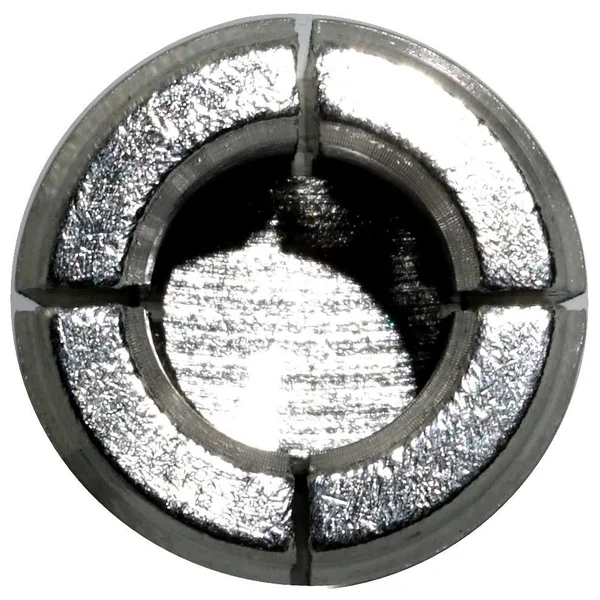

CONFAST 3/4x22 Coil Drop-In Anchor Zinc Plated with 1 Setting Tool (30 per Box) DICA34

Description

Edge Distance It is very important not to install the anchor any closer than 5" from an unsupported edge of the concrete. Applications The anchor is made from Carbon Steel, and is Zinc Plated. Hole Diameter/Bit Diameter The anchor requires a 1" hole to be drilled in the base material (Concrete only). This anchor is designed for use in Concrete only, and should never be used in block or brick base material. Applications The anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete only, and should never be used in block or brick base material. Minimum Embedment The minimum anchor embedment into the concrete is 3-3/16". Spacing between Anchors Each anchor must be spaced a minimum distance of 10" from each other when measured center to center. Environment The anchor is designed for use in a Dry environment. The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill. Therefore, the anchor must be installed so that a minimum of 3-3/16" of the anchor is embedded into the concrete.

Key Features

• Applications The anchor is made from Carbon Steel, and is Zinc Plated.
• Environment The anchor is designed for use in a Dry environment.
• Hole Diameter/Bit Diameter The anchor requires a 1" hole to be drilled in the base material (Concrete only).
• The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.
• This anchor is designed for use in Concrete only, and should never be used in block or brick base material.
• Minimum Embedment The minimum anchor embedment into the concrete is 3-3/16".
