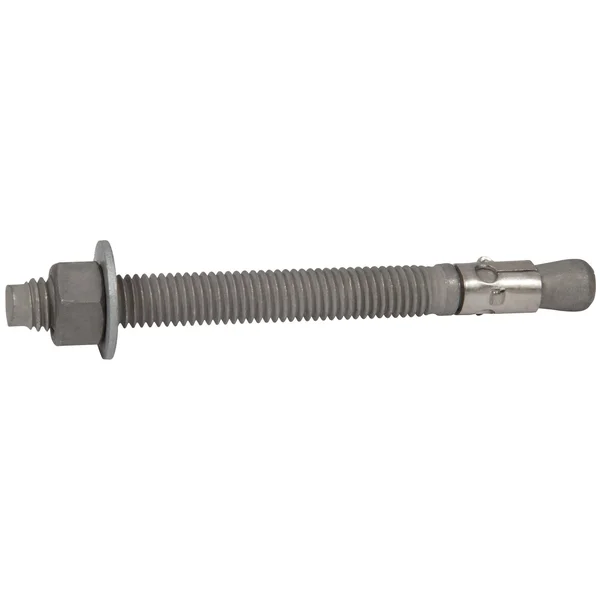

CONFAST 5/8x22 x 6x22 Hot-Dipped Galvanized Wedge Anchor (Box of 20)

Description

Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-5/8in. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. Spacing between anchors each anchor must be spaced a minimum distance of 6-1/4in from each other when measured center to center. Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete. Diameter of anchor the diameter of the anchor is 5/8in. Edge distance it is very important not to install the anchor any closer than 3-1/8in from an unsupported edge of the concrete. This will ensure that the minimum embedment of 2-3/4in will be met. Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Environment the anchor is designed for use in a damp environment.

Key Features

• Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only.
• Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in.
• Applications the anchor is made from carbon steel, and is hot-dipped galvanized.
• Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length.
• Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete.
• Diameter of anchor the diameter of the anchor is 5/8in.
