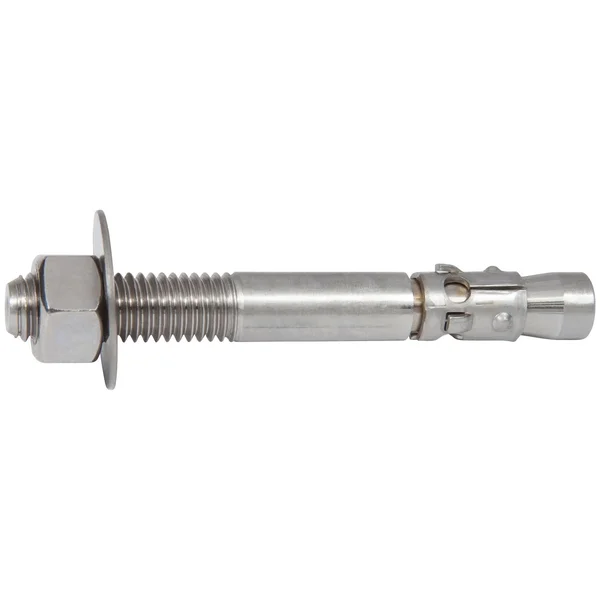

CONFAST American Made 3/8x22 x 3-3/4x22 316 Stainless Steel Wedge Anchor (50 per Box)

Description

The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. The 3/8in diameter anchor requires the hole in the fixture to be 1/2in. This anchor is designed for use in concrete only, and should never be used in block or brick base material. This will ensure that the minimum embedment of 1-1/2in will be met. Edge distance it is very important not to install the anchor any closer than 1-7/8in from an unsupported edge of the concrete. Spacing between anchors each anchor must be spaced a minimum distance of 3-3/4in from each other when measured center to center. Diameter of anchor the diameter of the anchor is 3/8in. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-1/2in. Applications the anchor is made from 316 stainless steel and meets the buy america act baa. Minimum embedment the minimum anchor embedment into the concrete is 1-1/2in. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Therefore, the anchor must be installed so that a minimum of 1-1/2in of the anchor is embedded into the concrete. Hole diameter/bit diameter the anchor requires a 3/8in hole to be drilled in the base material concrete only. Length anchor the length of the anchor is 3-3/4in thread length the length of the threads on the anchor is 1-1/4in in length.

Key Features

• Minimum embedment the minimum anchor embedment into the concrete is 1-1/2in.
• Therefore, the anchor must be installed so that a minimum of 1-1/2in of the anchor is embedded into the concrete.
• Hole diameter/bit diameter the anchor requires a 3/8in hole to be drilled in the base material concrete only.
• Diameter of anchor the diameter of the anchor is 3/8in.
• Applications the anchor is made from 316 stainless steel and meets the buy america act baa.
• Length anchor the length of the anchor is 3-3/4in thread length the length of the threads on the anchor is 1-1/4in in length.
