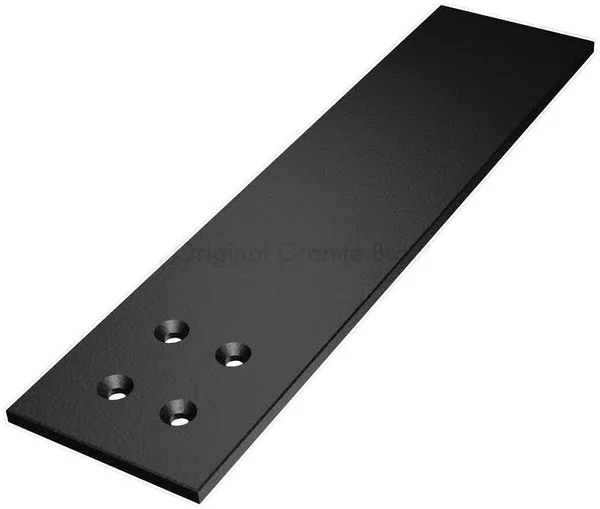

Contractor Grade Countertop Support Bracket (20 inch - 4pk)

Description

This bracket is the concealed countertop overhang bracket for countertop support. It is a nonintrusive support while giving your countertop the appearance of floating. Once installed this support bracket will be invisible and protect your countertop from cracking when leaned on. This bracket features countersunk holes to provide a flush installation for added support. Give yourself or your customer the peace of mind they deserve by having the strongest countertop support bracket on the market with the Contractor Grade Countertop Support Bracket. This bracket is designed to attach to the top of knee/pony walls to support extended countertop overhangs. How to determine what size bracket: The bracket will be mounted over the top of the knee/pony wall. The knee wall bracket is sized in length tip to tip. Start by measuring from the outer edge of your countertop, including the 4 inches for the knee/pony wall. For example, a 12-inch countertop overhang, plus the 4-inch knee wall gives us 16 inches. Then subtract 3 inches. This subtraction is to stay away from the outer edge of the countertop, which is usually 2-4 inches. This measurement would be 13 inches (12 + 4 3 = 13), thus you would need to order a 12-inch Contractor Grade Countertop Support Bracket. Dimensions of the Contractor Grade Countertop Support Bracket: Length [Select your chosen length when ordering bracket] Width 3 inches Thickness 1/4 inch Countersunk Hole Diameter 1/4 inch. Then subtract 3 inches.

Key Features

• This measurement would be 13 inches (12 + 4 3 = 13), thus you would need to order a 12-inch Contractor Grade Countertop Support Bracket.
• This subtraction is to stay away from the outer edge of the countertop, which is usually 2-4 inches.
• For example, a 12-inch countertop overhang, plus the 4-inch knee wall gives us 16 inches.
• Dimensions of the Contractor Grade Countertop Support Bracket: Length [Select your chosen length when ordering bracket] Width 3 inches Thickness 1/4 inch Countersunk Hole Diameter 1/4 inch.
• Start by measuring from the outer edge of your countertop, including the 4 inches for the knee/pony wall.
• Then subtract 3 inches.
