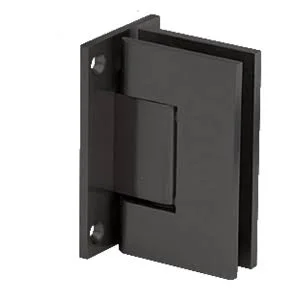

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

Made of solid brass with all moving parts (pins and springs) in stainless steel. Standard Geneva Hinges come with the 90 Degrees side activated. Construction: Solid Brass Hinge Swings: 90 degree in and 90 degree Out Closing Type: Self-Centering when within 15 degree of Closed Position Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. Custom Pivot Pin: Custom Pivot Pins (Cat. Custom finishes are available on request. The opposite side is marked 85 Degrees. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into. The Pin can be rotated (not flipped upside down) to activate the other side. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into shower interior. Contact Technical Sales Shower Door Division.

Key Features

• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
