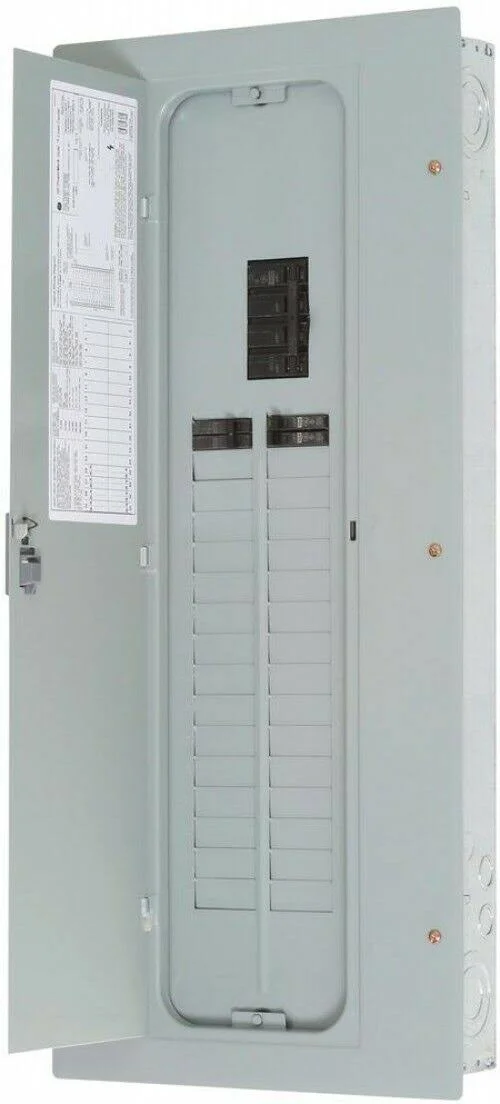

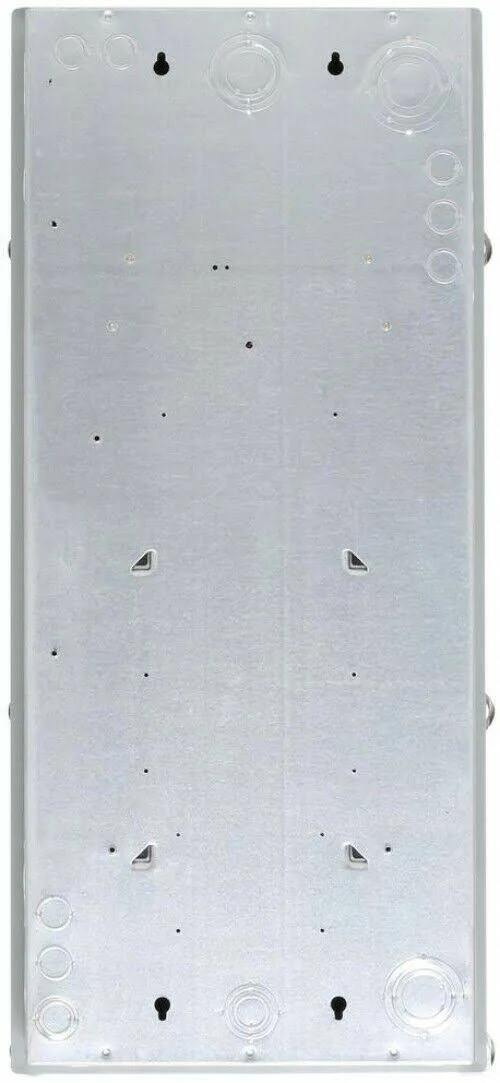

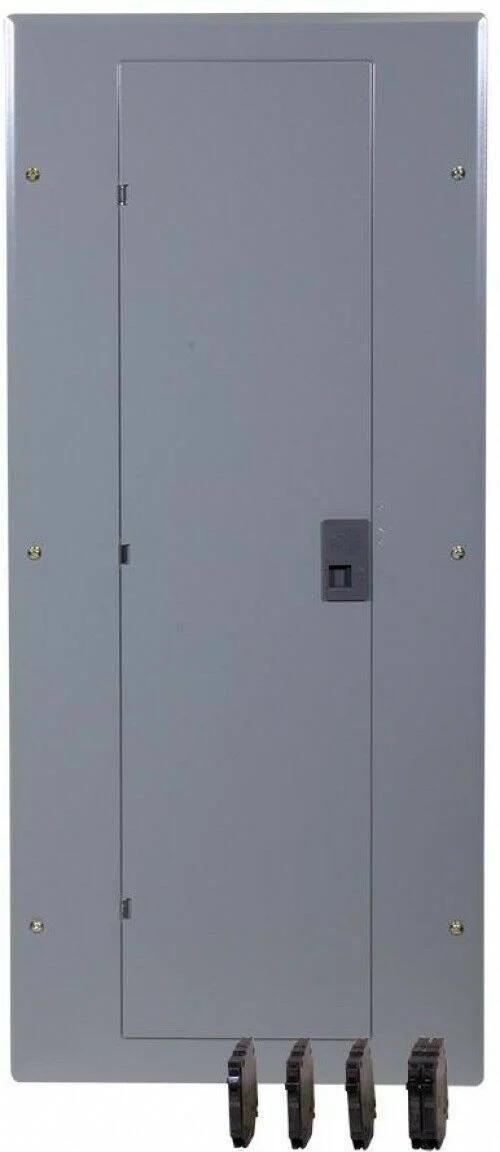

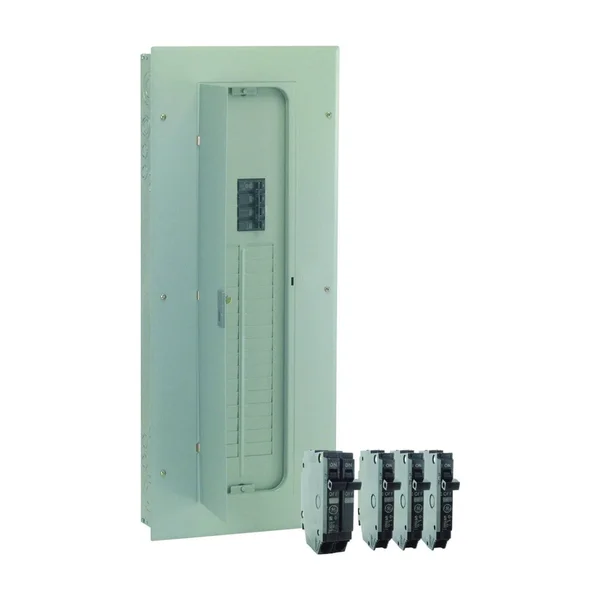

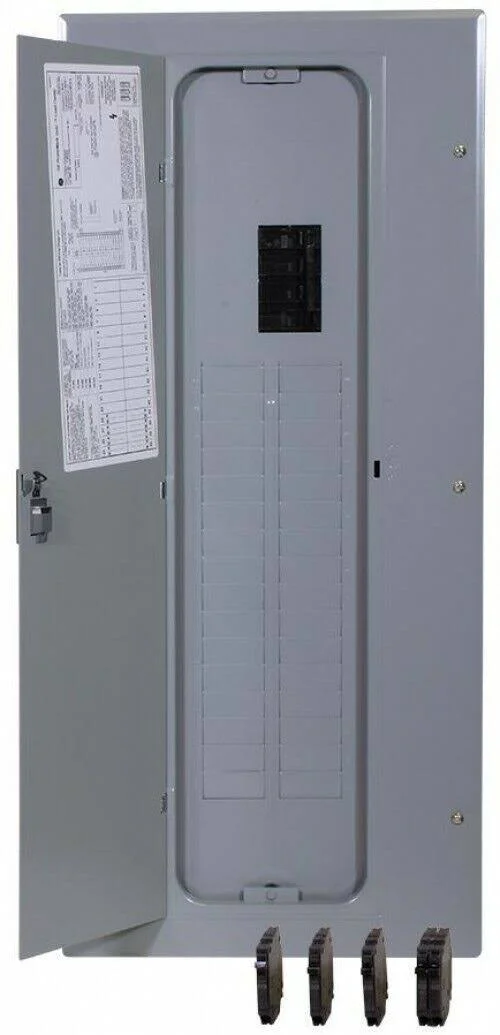

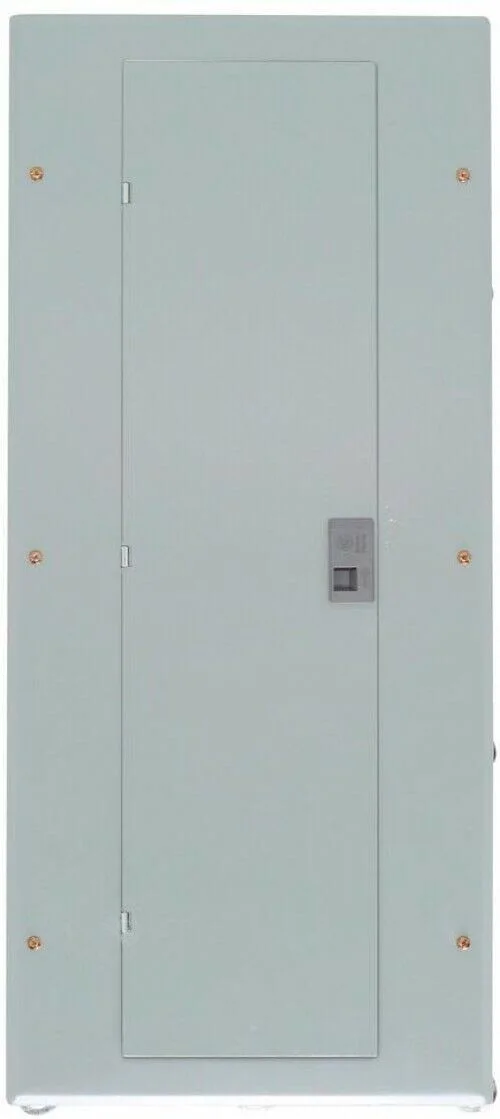

GE Electrical - Tm3220ccub2k Load Cntr 200A

Description

Accepts Q-Line THQL standard, GFCI and AFCI circuit breakers, including GE's exclusive 1/2 THQPs. 16 height x 14 width x 3.375 depth, 16.79 lb. Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box. Indoor NEMA 1 enclosure with combination surface/flush front. Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover. One-piece interior removes and re-installs easily. Single-phase, 3-wire, 120/240-volt and 22K AIC rating. All holes are rated for 14-4 wire and 100 percent rated split neutrals on each side. Accepts Q-Line THQL standard, GFCI and AFCI circuit breakers, including GE's exclusive 1/2 THQPs. UL Listed and ANSI Certified. 16 height x 14 width x 3.375 depth, 16.79 lb. Single-phase, 3-wire, 120/240-volt and 22K AIC rating. UL Listed and ANSI Certified. Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box. All holes are rated for 14-4 wire and 100 percent rated split neutrals on each side. Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover. Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box. 16 height x 14 width x 3.375 depth, 16.79 lb. One-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front.

Key Features

• Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover.
• 16 height x 14 width x 3.375 depth, 16.79 lb.
• Includes a sturdy highly-conductive tin-plated copper buss bar and a rust-resistant galvanized box.
• One-piece interior removes and re-installs easily.
• Indoor NEMA 1 enclosure with combination surface/flush front.
• Single-phase, 3-wire, 120/240-volt and 22K AIC rating.
