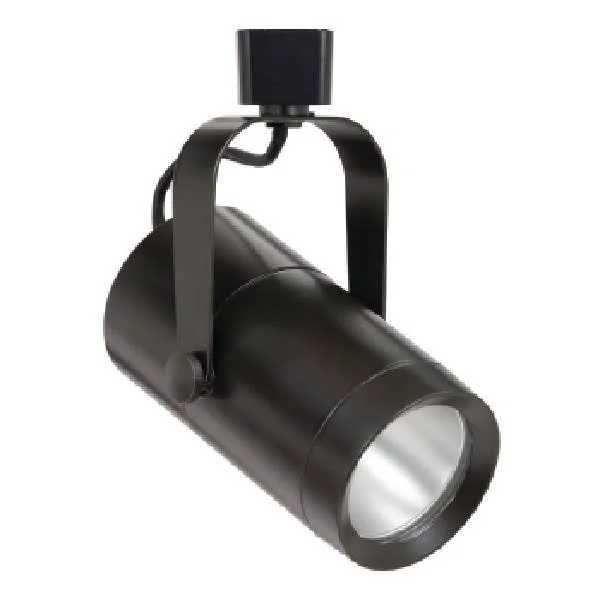

Halo Track Lighting L80825NF9030MB 4x22 LED Single Circuit Cylinder Track Fixture, 2500 Lumens, Narrow Flood 90 CRI, 3000K, 120V

Description

High efficacy low profile track fixture ideal for accent and display lighting applications. Featuring die cast construction with a simple low profile design. These lampholders are for those applications where performance is required from a discreet source. PRODUCT SPECIFICATIONSQuick Lock Adapter (Fixture to only be attached to horizontally installed track systems.) Attaches electrically and mechanically anywhere along the track. Includes discrete locking tab that locks the luminaire on the track and allows for easy removal and repositioning. Heat Sink - Aluminum die-cast heat sink provides thermal management to yield 70% lumen maintenance after 50,000 hours of operation. LED Light Engine - Chip on board LED provides a uniform source with high efficiency and no pixilation. Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity.OpticsConfigurable optics allow for the reflectors to be changed in the field to adjust to the current lighting need. Available in spot, flood and narrow flood distributions.MediaPrecision designed trim ring contains unique teeth locking mechanism, and can accept up to 2 pieces of standard media. The 3" diameter fixture accepts PAR 20 standard media. The 4" diameter fixture accepts PAR 30 standard media. Luminaire Arm - Arm allows the lamp housing tilt to adjust ±180o vertically and ±350o horizontally. NSF non-food zone compliant. Contains no mercury or lead and Ro - HS compliant.

Key Features

• This enables a clean look while providing full aiming capabilities. - Dimming TRIAC, ELV or Phasecut - Designed for continuous dimming capability to nominally 5% with many 120V Leading Edge (LE) and Trailing Edge (TE) Phase Control Dimmers.
• 4" fixtures (35W) contain 120V 50/60Hz constant current driver that provides noise free operation.CompliancecULus listed / certified for use with Halo Single Circuit Power- Trac and Global TEK/HTEK track(See Footnote #1 below Ordering.
• Heat Sink - Aluminum die-cast heat sink provides thermal management to yield 70% lumen maintenance after 50,000 hours of operation.
• (Dimmers with low end trim adjustment offer greater assurance of achieving 5% level.) - Drivers3" fixtures (12W and 21W) contain integral 120V, 50/60 Hz constant current driver that provides noise free operation.
• Includes discrete locking tab that locks the luminaire on the track and allows for easy removal and repositioning. - Heat Sink - Aluminum die-cast heat sink provides thermal management to yield 70% lumen maintenance after 50,000 hours of.
• Includes discrete locking tab that locks the luminaire on the track and allows for easy removal and repositioning.
